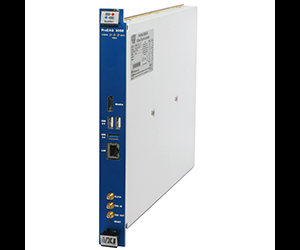

The ProDAQ 3058 Intel® Pentium®-based embedded slot-0 controller is the first embedded controller to support fully the VXI-1 4.0 interface standard. Using Bustec’s high speed PCI Express to VXIbus interface it supports all VXIbus transfer modes defined in the standard including the new 2eSST block transfer mode with up to 320 MB/sec throughput. The quad-core Intel® Pentium® N3710 features a boost clock of up to 2.56 GHz, a DirectX 11.2 capable GPU and a dual channel DDR3L memory controller with up to 25.6 GB/s throughput.
For more information, click here.

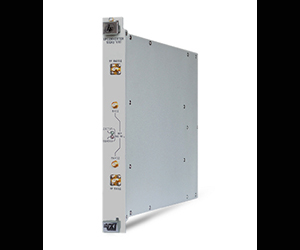

UPCONVERTER 10 GHz provides a transfer (controlled by software) of a spectrum bandwidth of up to 150 MHz, which is received at a signal input, to any point of spectrum bandwidth from 10 MHz to 10 GHz. A spectrum transfer is based on superheterodyne principle with three stages of the down-conversion. Due to this feature, a high level of carrier frequency suppression (up to -55 dBc) and of mirror channel suppression (up to -70 dBc) is achieved in the entire operating frequency range. Also “UPCONVERTER 10 GHz” has a unique feature to set the value of an output intermediate frequency in the range from 75 MHz to 400 MHz. This feature isn’t presented in other devices of similar type. In addition, the device can transmit an input signal frequency from 10 to 400 MHz to an output without conversion. Due to presence of this feature a wide range of Russian and foreign made generators combined with “UPCONVERTER 10GHz” can be used as generators with increased output frequency range. Holding “Informtest” offers to customers “MGKS” and “MGVCH” generators designed and manufactured by “Informtest”, as well as the first Russian transceiver module “MT-1. All these instruments are fully compatible with the input characteristics of the “UPCONVERTER 10 GHz”.
For more information, click here.

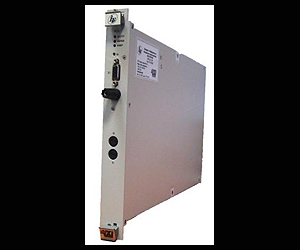

Holding “Informtest” presents an enhanced version of high accuracy resistance measurement (also voltage generating) module IS4.
The following characteristics have been improved:
A higher value of output current used in resistance measuring mode allows to increase reliability of detection of such defects as “cold” solder and insufficient electromechanical connection.
Output voltage value has been increased for test of insulation durability test. The new value ranges:
For more information, click here.

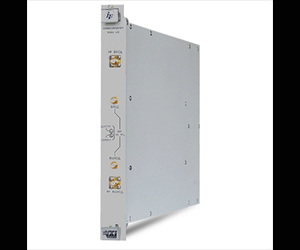

DOWNCONVERTER 10 GHz provides a transfer (controlled by software) of a spectrum bandwidth of up to 150 MHz, which is received at a signal input, to any point of spectrum bandwidth from 10 MHz to 10 GHz. A spectrum transfer is based on superheterodyne principle with three stages of the down-conversion. Due to this feature, a high levels of carrier frequency suppression (up to -80 dBc) and of mirror channel suppression (up to -90 dBc) is achieved in the entire operating frequency range.
Also “DOWNCONVERTER 10 GHz” has a unique feature to set the value of an output intermediate frequency in the range from 75 MHz to 400 MHz. This feature isn’t presented in other devices of similar type. In addition, the device can transmit an input signal frequency from 10 to 400 MHz to an output without conversion. Due to presence of this feature a wide range of Russian and foreign made ADCs can be used as a digitizer by combining with “DOWNCONVERTER 10GHz”.
For more information, click here.

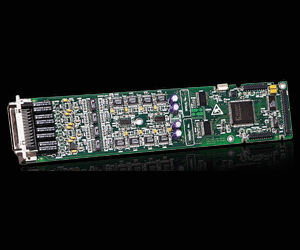

The ProDAQ 3518 Digital-to-Analog Converter Function Card is one of the ProDAQ range of high density function cards, designed to be fitted to the ProDAQ VXIbus motherboards and LXI function card carriers.
This high density card contains 8 independent 18-bit programmable Digital-to-Analog (DAC) channels. The ProDAQ 3518 DAC Function Card is specially designed for DC applications and takes advantage of new technology products in order to achieve outstanding DC performance with an absolute accuracy of up to 12 ppm.
There are seven standard versions of the ProDAQ 3518 available: 0 to +5V, 0 to +10V, 0 to +20V, ±2V, ±5V, ±10V and ±20V output. Other output ranges are available on request. All voltage outputs have continuous short circuit protection.
Each channel includes the option to use Remote Voltage sensing in order ensure the highest possible DC accuracy.
For more information, click here.

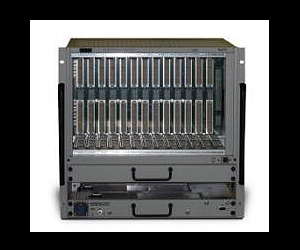

The Racal Instruments™ 1263HPf VXI 4.0 high-power 13-slot mainframe allows you to leverage the speed and power of the newest VXI standard. The high power and cooling capability makes it ideal for housing the latest generation of high-performance VXIbus instruments, such as high-power digital test instruments.
Unprecedented Power and Speed
The 1263HPf high-power mainframe is the first to take advantage of the power and speed delivered by the latest revision to the VXIbus specification.
For more information, click here.

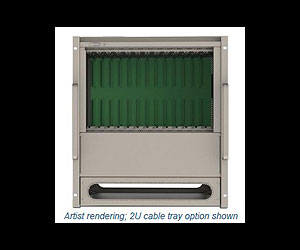

The Racal Instruments™ 1263HPr VXI 4.0 high-power 13-slot mainframe allows you to leverage the speed and power of the newest VXI 4.0 standard. The high-power and cooling capability make it ideal for housing the latest generation of high-performance VXIbus instruments, such as high-power digital test instruments.
High Power And Extensive Cooling
The 1263HPr is capable of delivering up to 3.8 kW of power to the VXIbus modules to meet the most power-hungry applications.
For more information, click here.

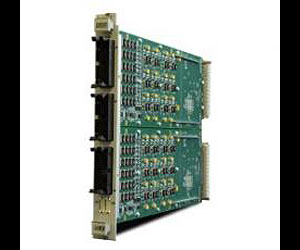

The Talon Instruments™ T940 Dgital Resource Module (DRM) provides up to 64 high-performance digital I/O channels in a space-saving single-wide VXI 4.0 compatible module. The T940 operates at data rates up to 50 MHz with 1 ns edge placement, variable slew rates, and <3 ns channel-to-channel skew.
The T940 series of digital modules for the VXIbus provides the basis for a complete state-of-the-art digital solution at the subsystem level. The T940 is the solution for both legacy digital replacement and new test stations to be built for digital test including aircraft/avionics, weapons systems, spacecraft, semiconductors and medical devices.
For more information, click here.

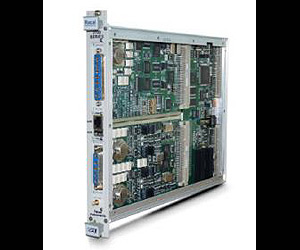

The Racal Instruments™ 3172, a 200 MS/s Waveform Generator and Dual 50 MHz Pulse and Timing Generator, combines multi-instrument density and high-frequency performance in a single-slot, C-sized VXIbus format.
Waveform output in the range of 100 µHz to 30 MHz with 16-bit vertical resolution (12-bit vertical for 3171 emulation) and pulse output to 50 MHz make the 3172 a powerful solution to a variety of test stimulus requirements.
For more information, click here.

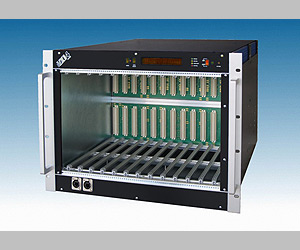

The new WIENER VXI 4600 mainframe series is a compact design with high density, highly sophisticated, modular designed power supplies. The power supply features output power up to 3kW, with extremely low noise and ripple (PARD). The 8U, 13-slot chassis offers superior cooling, due to an efficient air guiding system. The fan tray has three high efficient DC-fans and is situated at the lower rear side in a removable fan tray with optional air filter. The VXI 4600 mainframe is available with the new VXI-4 bus. Local as well as remote monitoring and control are standard features.
For more information, click here.
LXI-VXI Gigabit Ethernet Slot-0 Interface
For more information, click here.

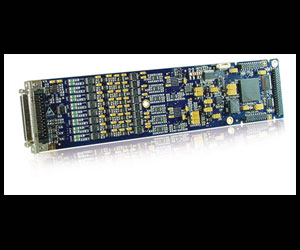

The ProDAQ 3416 16-channel, 24-bit, sigma-delta ADC function card is a high-density card that fits into ProDAQ VXIbus motherboards and LXI function card carriers. It contains sixteen sigma-delta ADCs, each equipped with its own filter and independently programmable gain stage with differential inputs. The gain is programmable from 1 to 2000, giving voltage ranges from ±10 V to ±5 mV. All channels are sampled simultaneously. In addition, the ProDAQ 3416 function cards can be synchronized with other ProDAQ function cards.
Users can switch the voltage from the ProDAQ 3202 programmable voltage reference card directly to the input of the gain stage for on-the-fly calibration or self-test purposes.
For more information, click here.

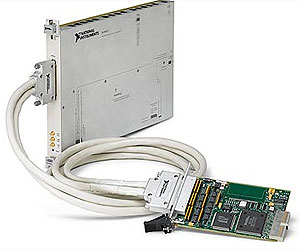

VXI MXI-2 Interface Kit for PXI
For more information, click here.

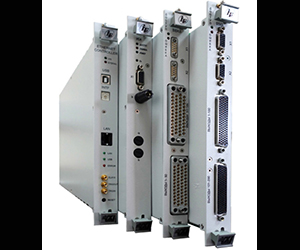

Holding Informtest presents its new product – the precision digital measurer IS4 designed for use at the upgrade automated system for monitoring a quality of cable networks and harnesses TEST-9110-VXI. The outstanding features of the VXI module IS4 make it a unique device that performs the functionality of precision multimeter, megohmmeter and precision source of AC and DC voltage simultaneously.
The new VXI module is based on its previous version IS3 and has an expanded functionality compared to its predecessor.
For more information, click here.
